SN75976A1DL
Manufacturer:
Texas Instruments
Mfr.Part #:
SN75976A1DL
Datasheet:
Description:

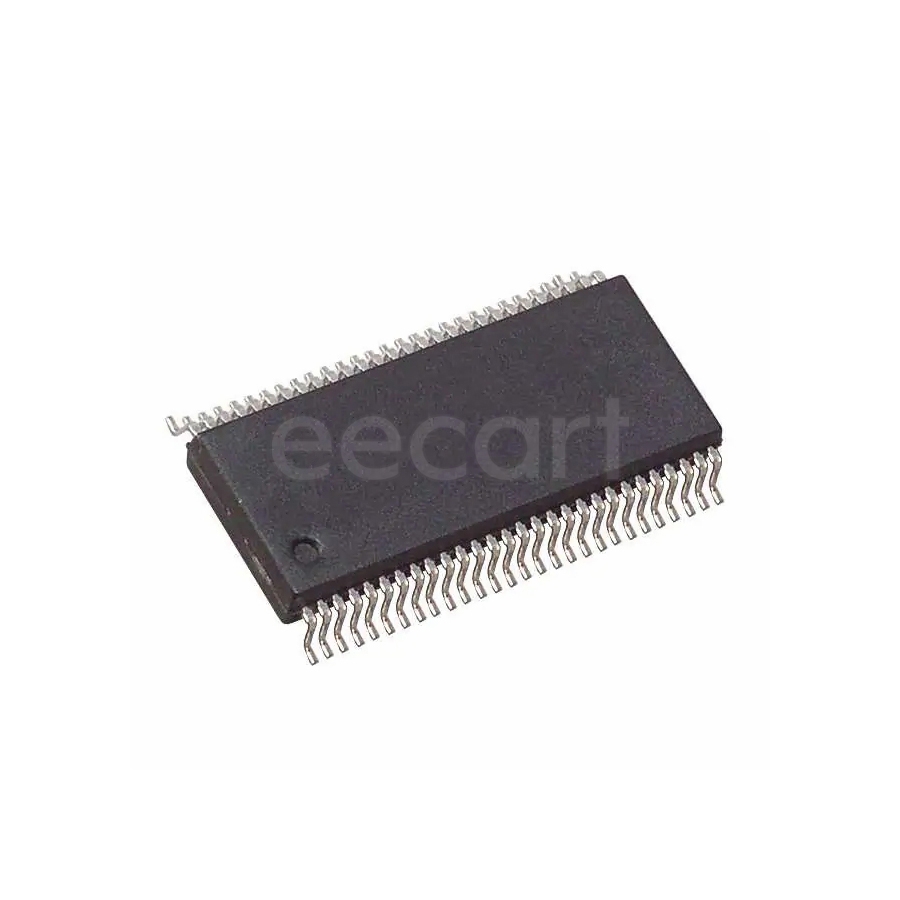

RS-232 / RS-422 / RS-485 Interface ICs SSOP-56 SMD/SMT Transceiver 20 Mbps
| Parameter | Value |
|---|---|
| Length | 18.41 mm |
| Width | 7.49 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 56 |
| Height | 2.79 mm |
| Packaging | Reel |
| Thickness | 2.59 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 694.790113 mg |
| Output Current | 260 mA |
| Output Voltage | 1.8 V |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 3 days ago) |
| Max Power Dissipation | 2.5 W |
| Max Supply Voltage | 5.25 V |
| Min Supply Voltage | 4.75 V |
| Power Dissipation | 2.5 W |
| Operating Supply Current | 60 mA |
| Propagation Delay | 13.5 ns |
| Logic Function | Transceiver |
| Data Rate | 20 Mbps |
| Simplex/Duplex | Half |
| Number of Transceivers | 1 |
| Nominal Supply Current | 60 mA |
| Number of Drivers | 9 |
| Number of Receivers | 9 |
| Number of Transmitters | 9 |
| Receiver Hysteresis | 45 mV |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
